9to5 Seating: Phase I

Jerick Sevilla

Age: 34

Profession: Regional Vice President at Sequoia Innovations

Needs:Physical and Online Product catalog to shop for new office seating. Busy but is open to viewing seats in a live showcase.

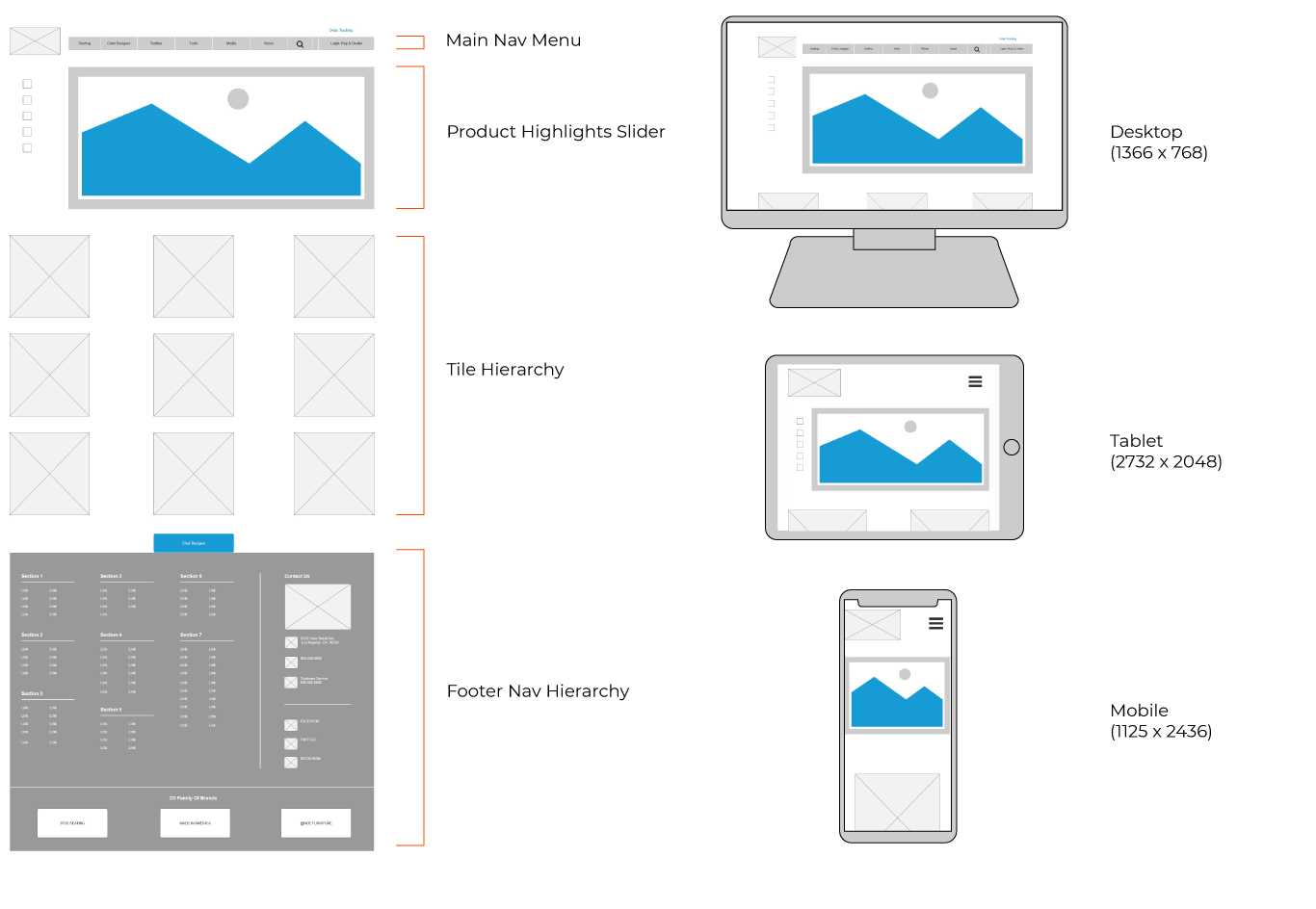

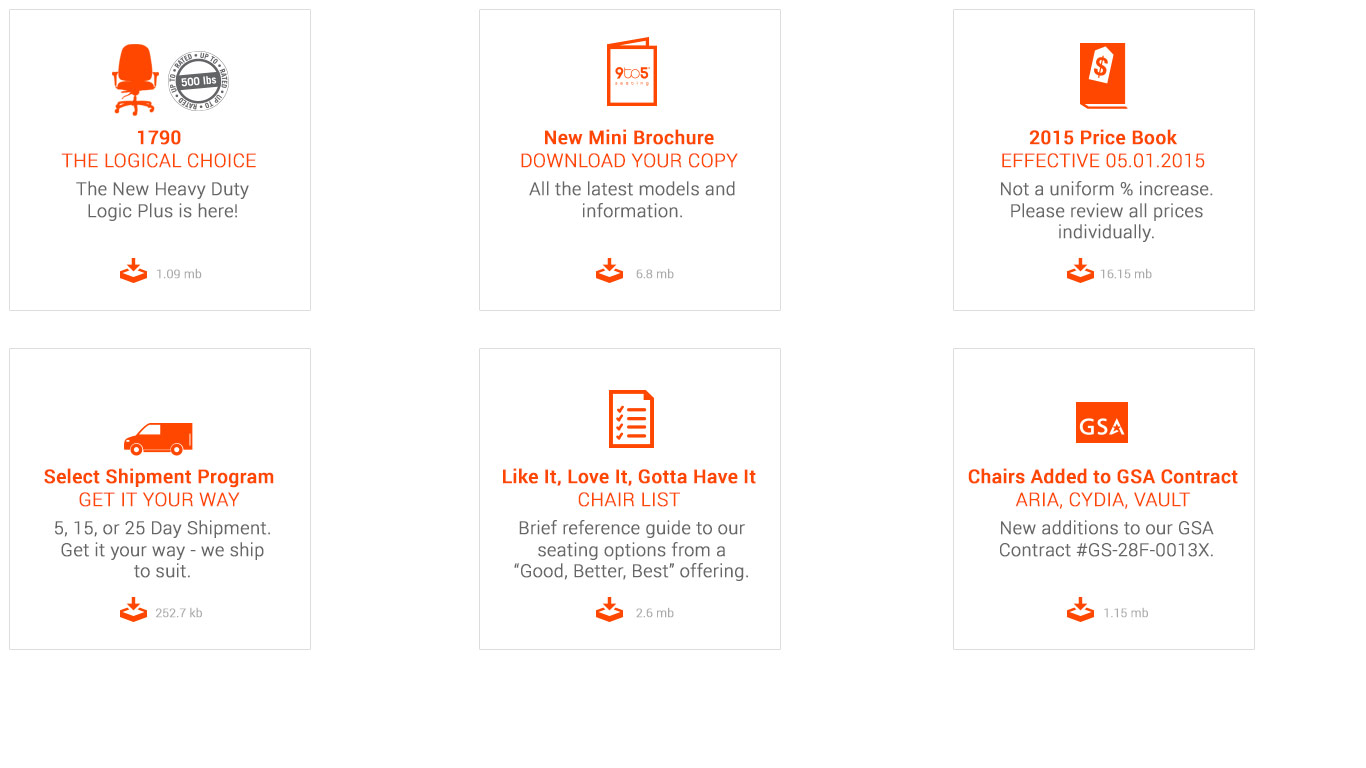

One of the biggest concerns we had was that we put together a navigation comfortable and easy for our clients and sales reps to navigate through. According to the hierarchy that we built, we wanted the most important features visible first, highlighting what our clients are initially coming and browsing on the site.

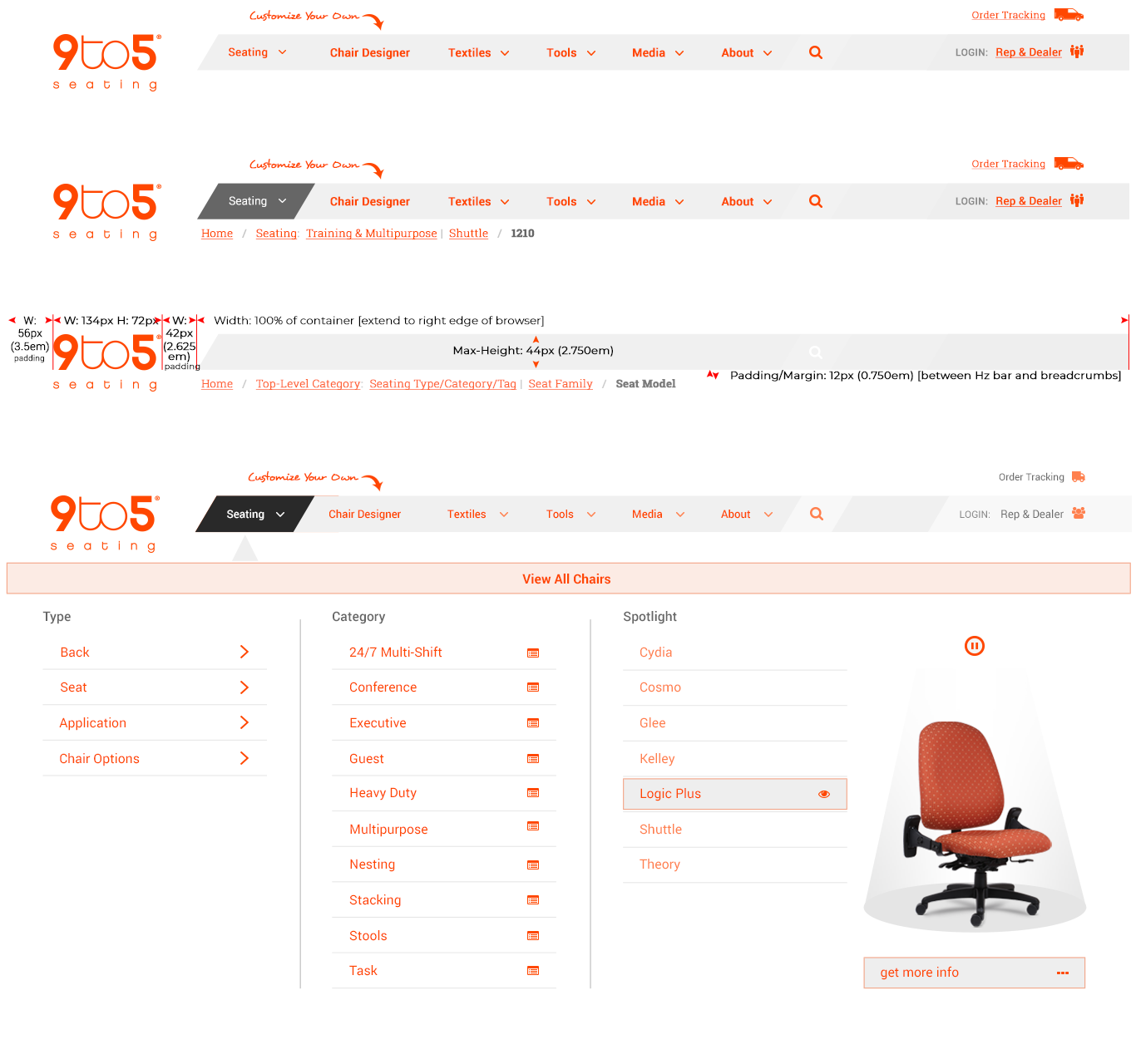

The navigation will consist of a hover state that will give a dropdown that will highlight each selected url button. For example if they are hovering over the seating category, we will give the a sub navigation with the option of Type, Category (Category for the purpose of the chair), and a spotlight of some of the recommended seats.

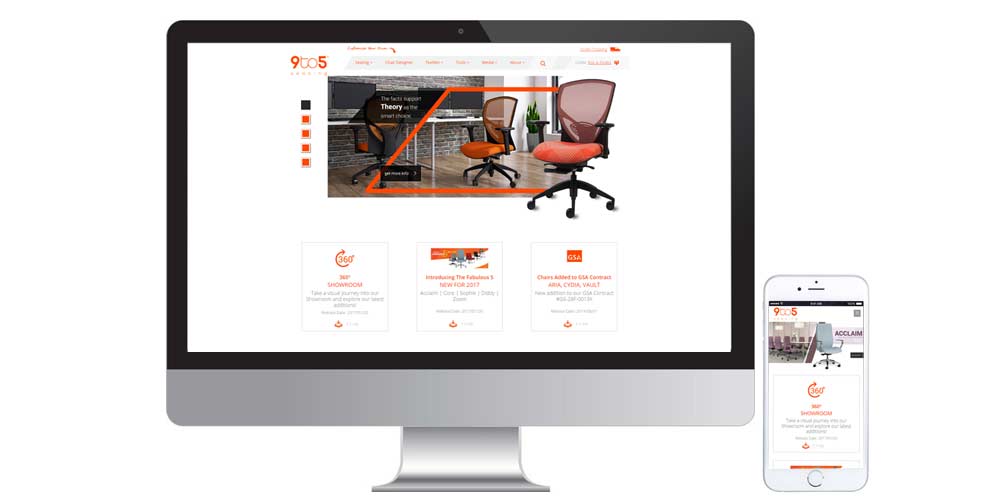

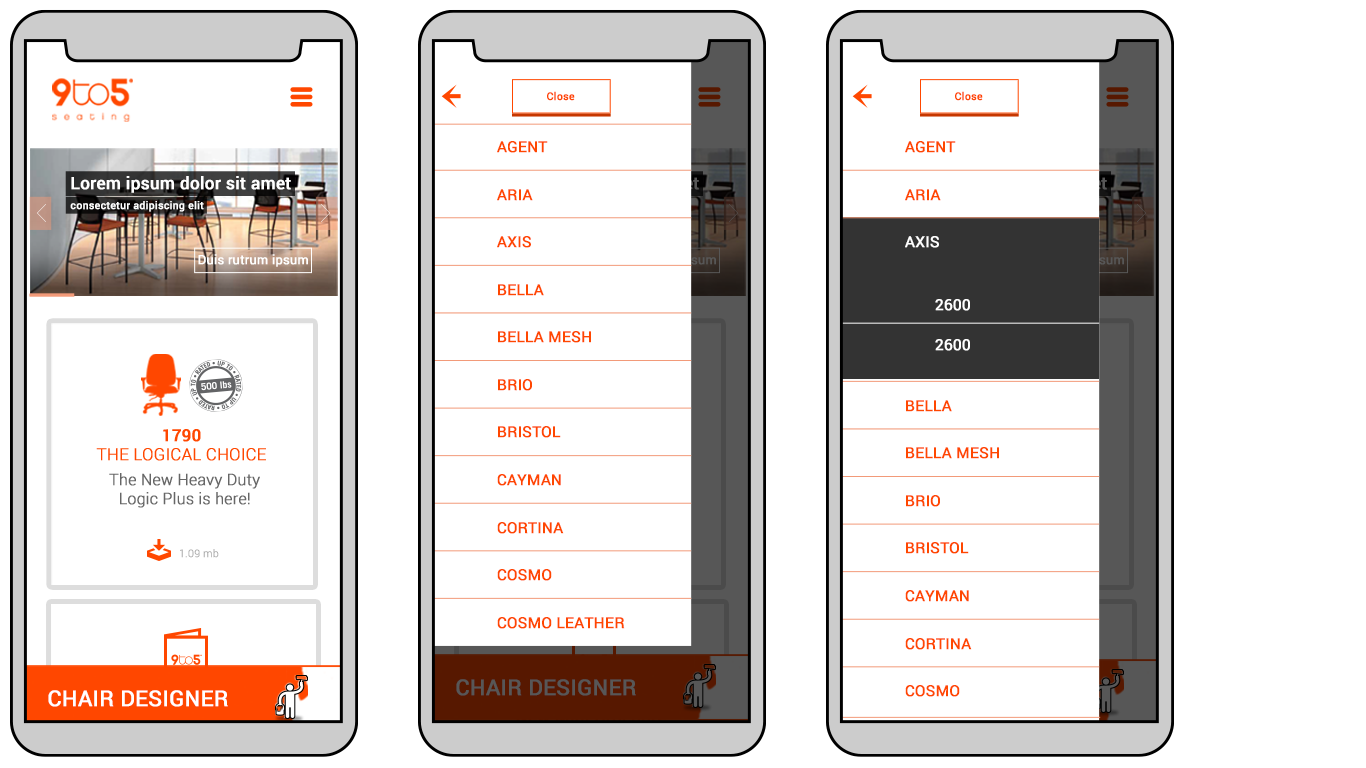

Just like the above the mobile version will also carry those different options but in a more compact design. The user will take some additional steps but they will still have full control of where they want to navigate.

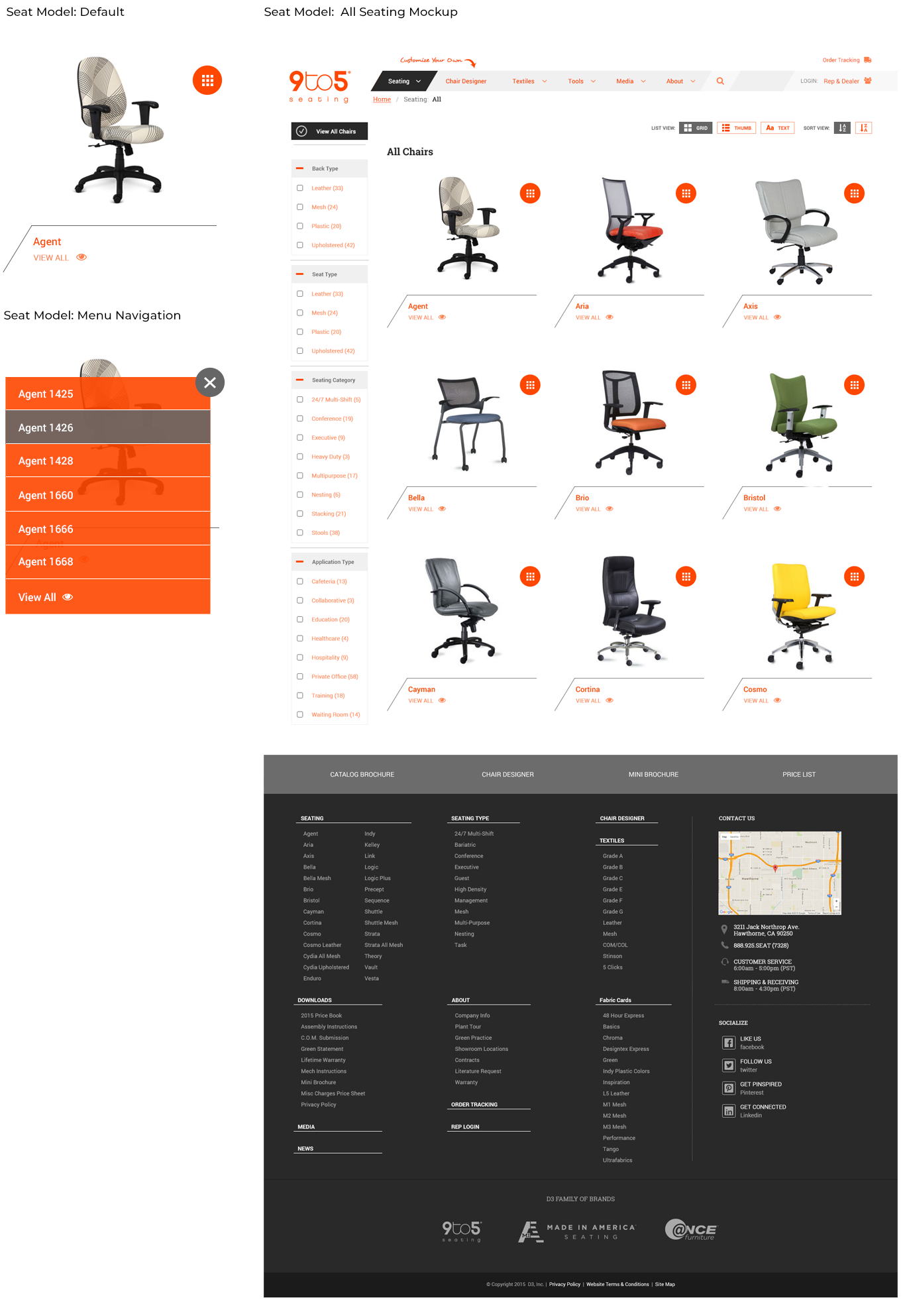

One of the main attractions of the 9to5seating website, is of course the seating page. Each seat will be laid out by default in a three-column view but you will have the option to switch views in the layout options bar. Each seat will have its own hover menu/click menu (when on mobile) so that our users will get the most options available right there and then.

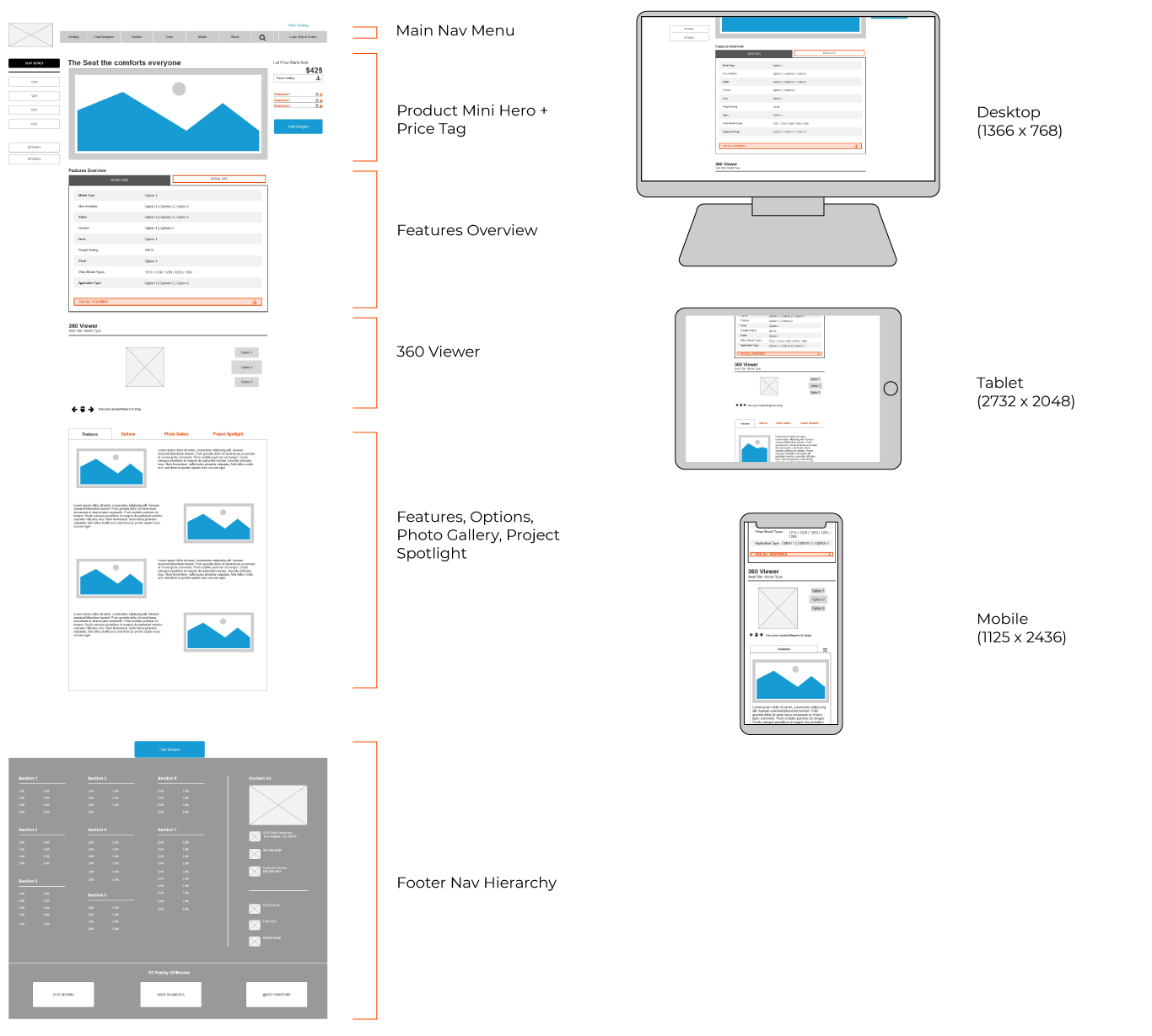

For the seating overview we decided to move forward with the layout given above. The page will consist of a 3D rendering provided by our 3D Generalist, Jackie Adelmeyer, and display a lovely showcase of the specific product. The mini hero will give a welcoming vibe off to the clients and will display an environment of which the seat will best fit into.

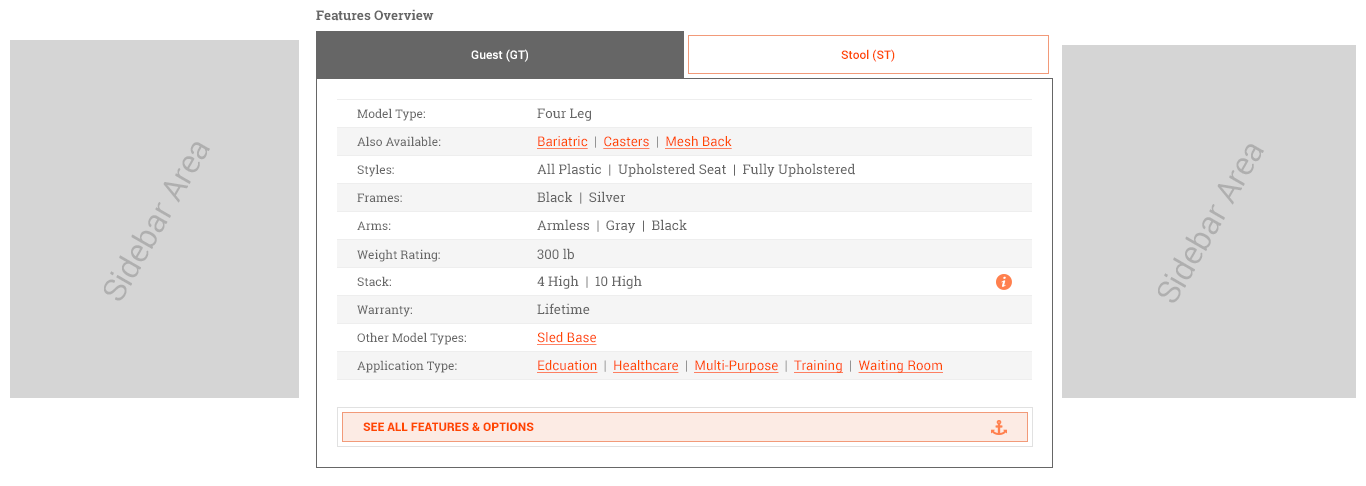

The idea behind giving a features overview is for instant specifications at a glance. This wouldn’t go over all the options in detail, but would give quick options to relate to the users needs. We had the idea that if the buyer can see that a seat comes with multiple options to fit their environment then it would push the user into seeing more or navigate more throughout the page to find what they’re looking for. This would be a great addition to the page.

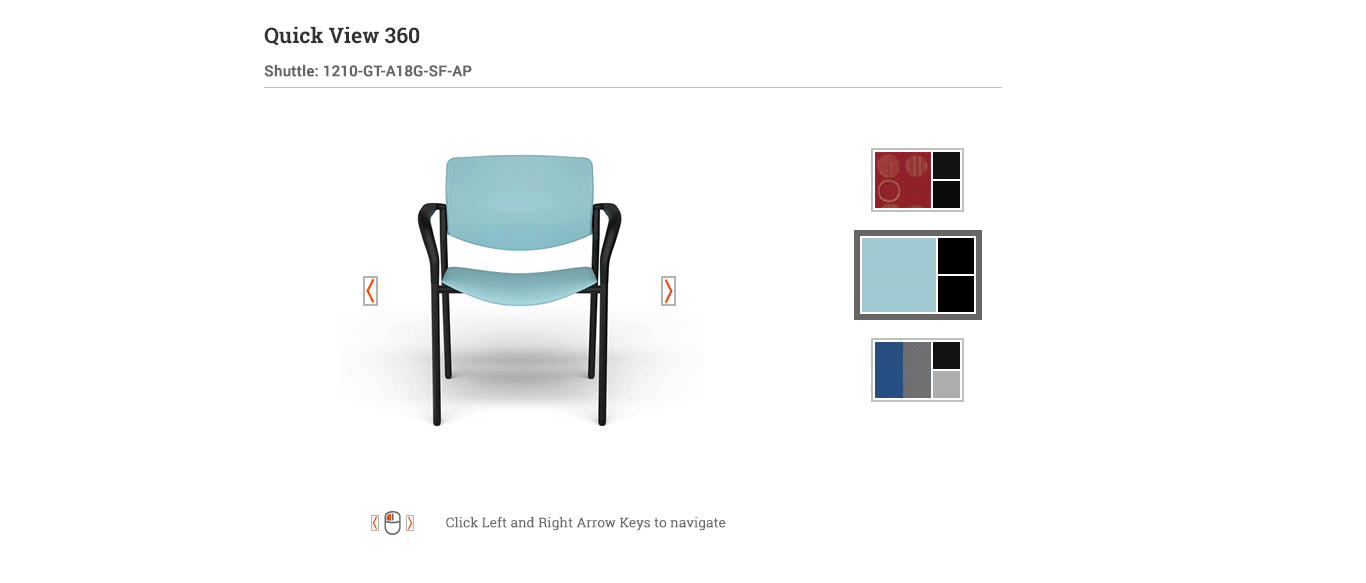

Another feature we wanted to give our users was to view the chair at all angles around. So we implemented a 360 viewer used on all platforms as an easy way for our users to accomplish just that. The user would be able to choose from a few different seat colors and styles to help make a decision if that’s the direction they want to go in for their seating needs.

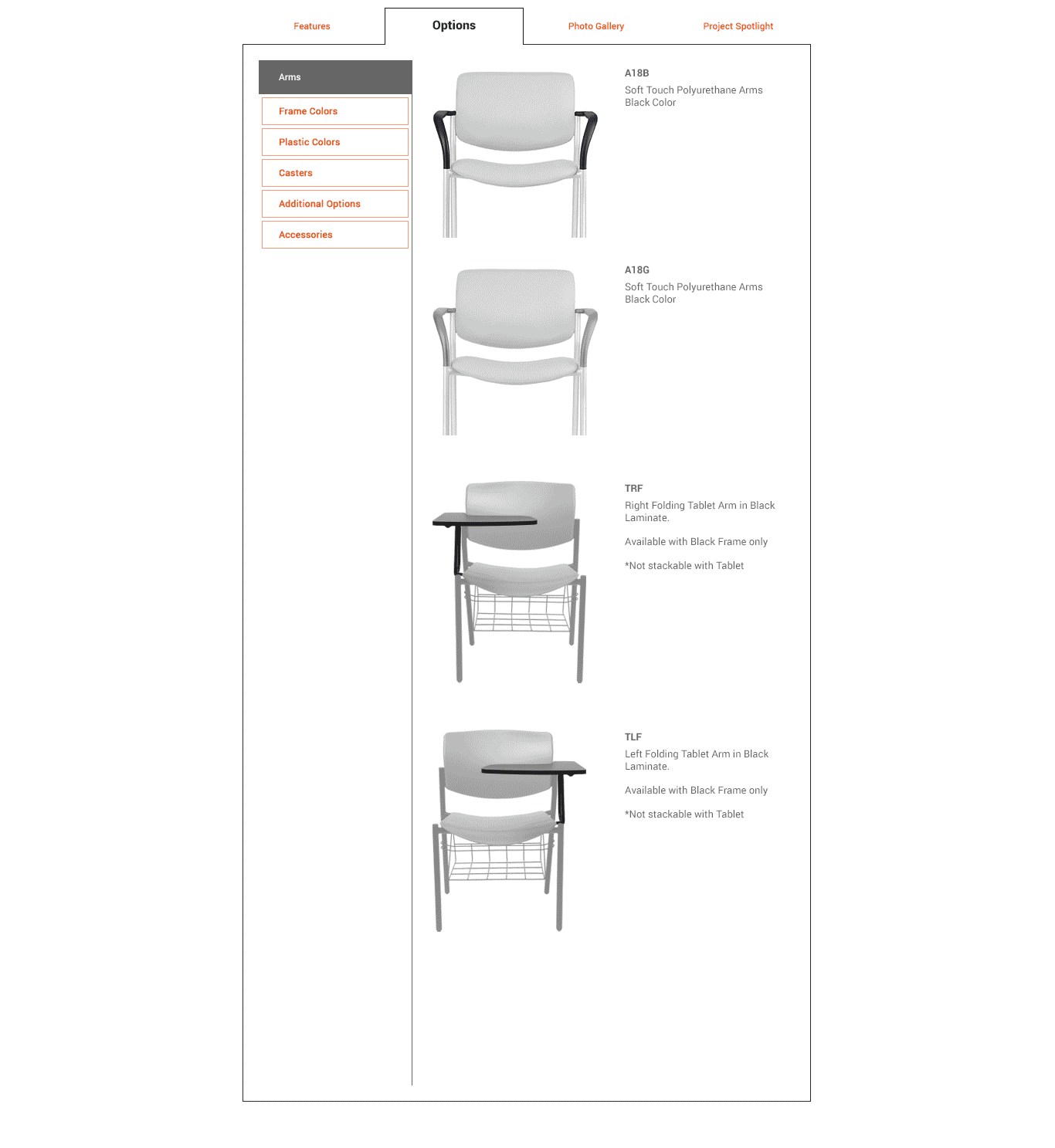

So the final section for this page will consist of a tab feature module on the page that will give a more in-depth look at the features, options, spotlights (live environments), and Photo Gallery. Each tab will give a complete overview of the functions and options that each seat will contain. As the user dives into the options they will get a better idea of the full capabilities of each seat they view.

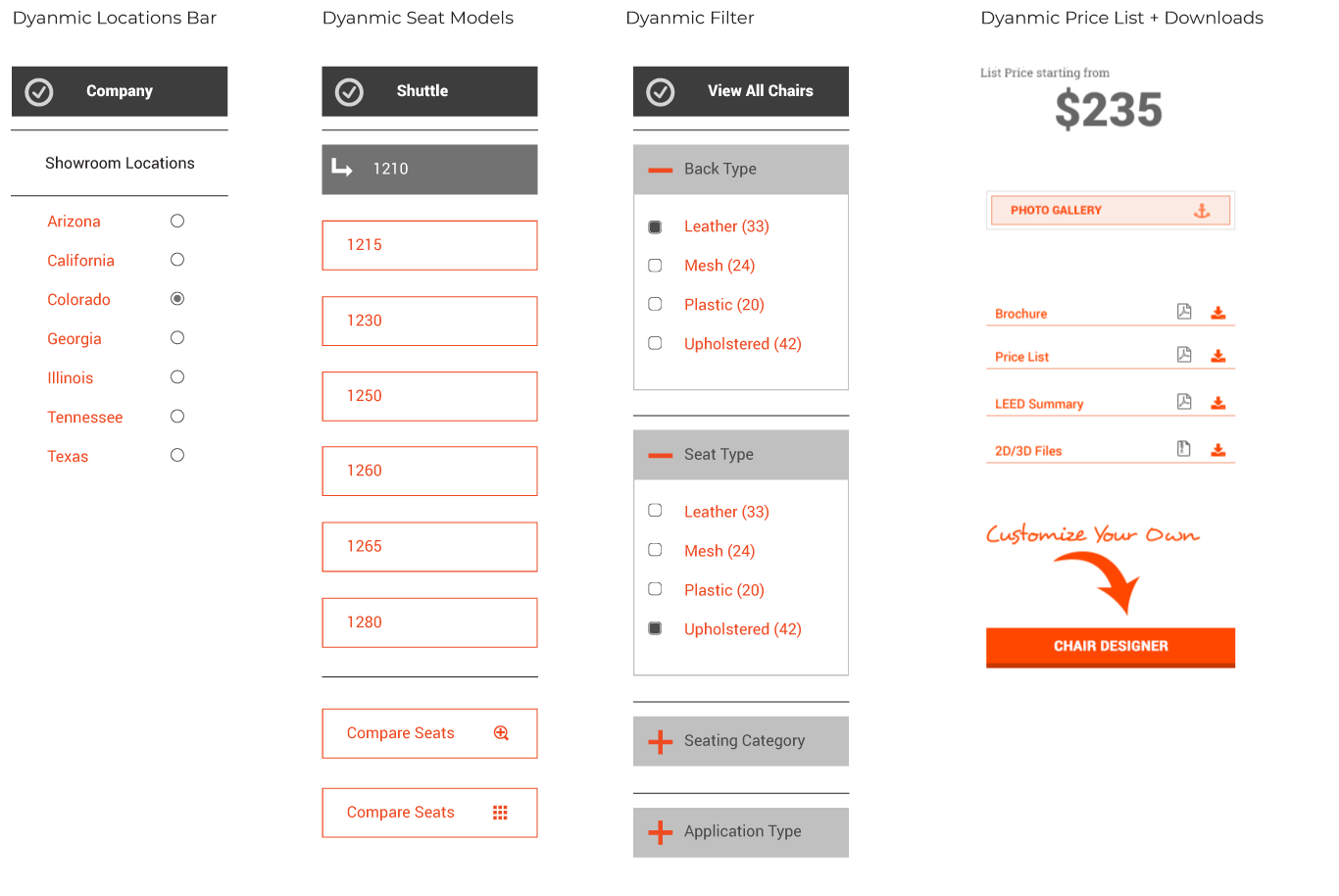

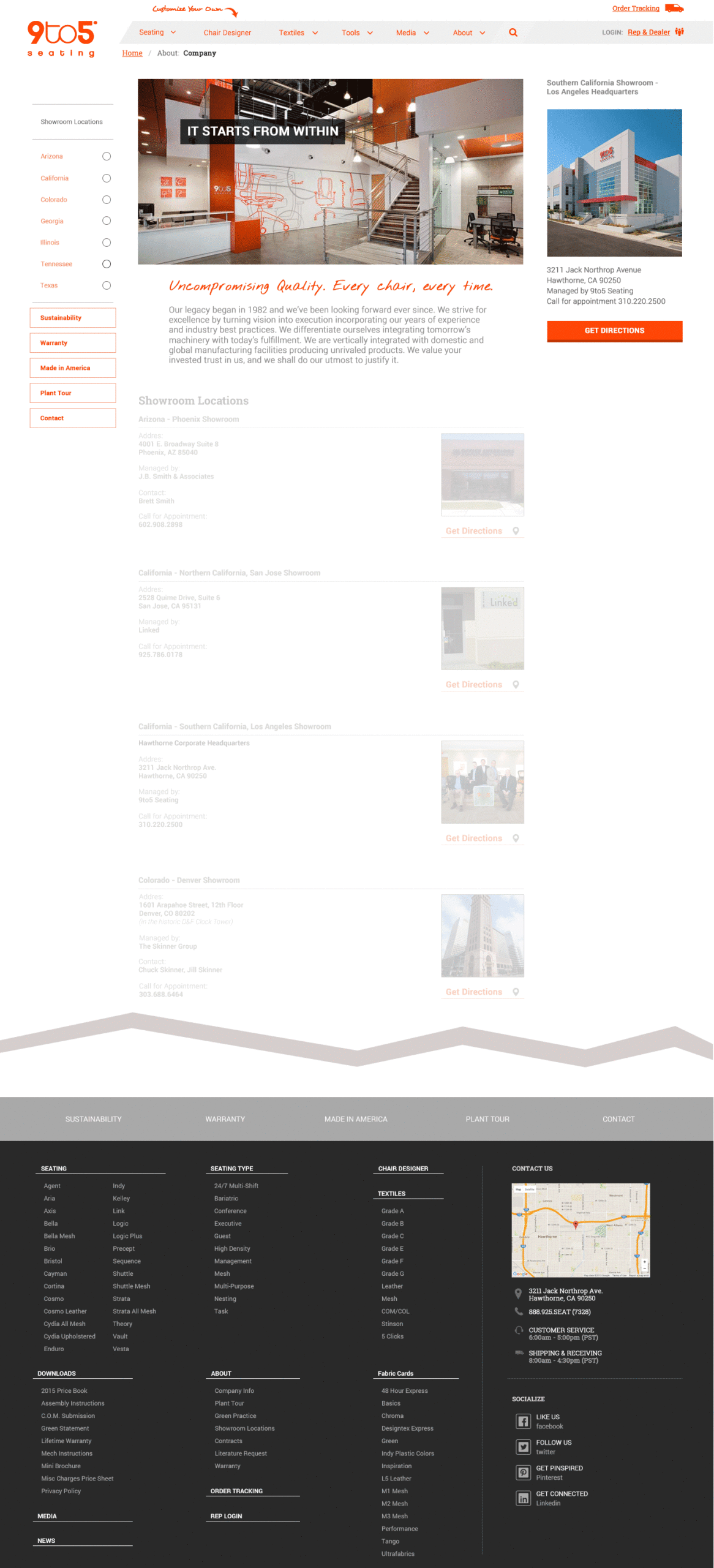

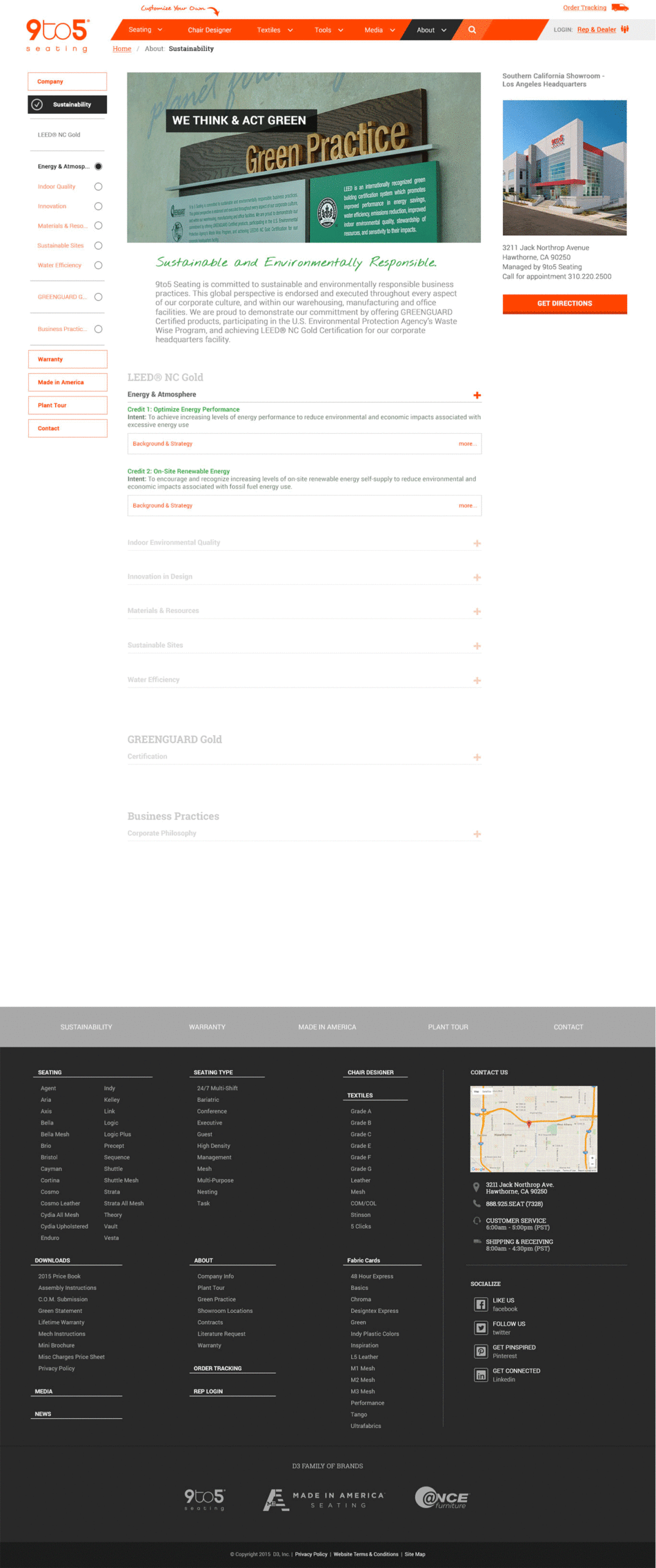

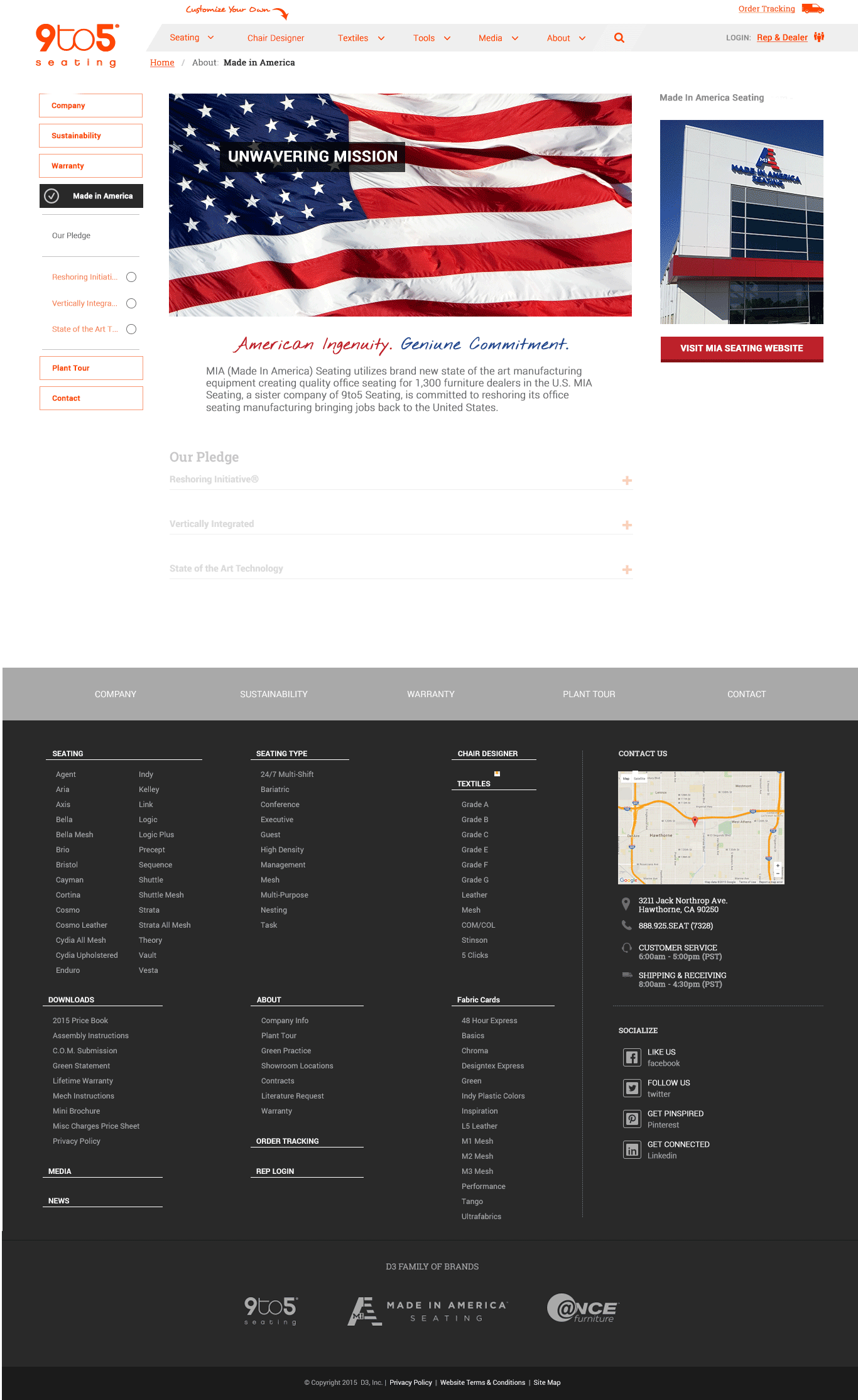

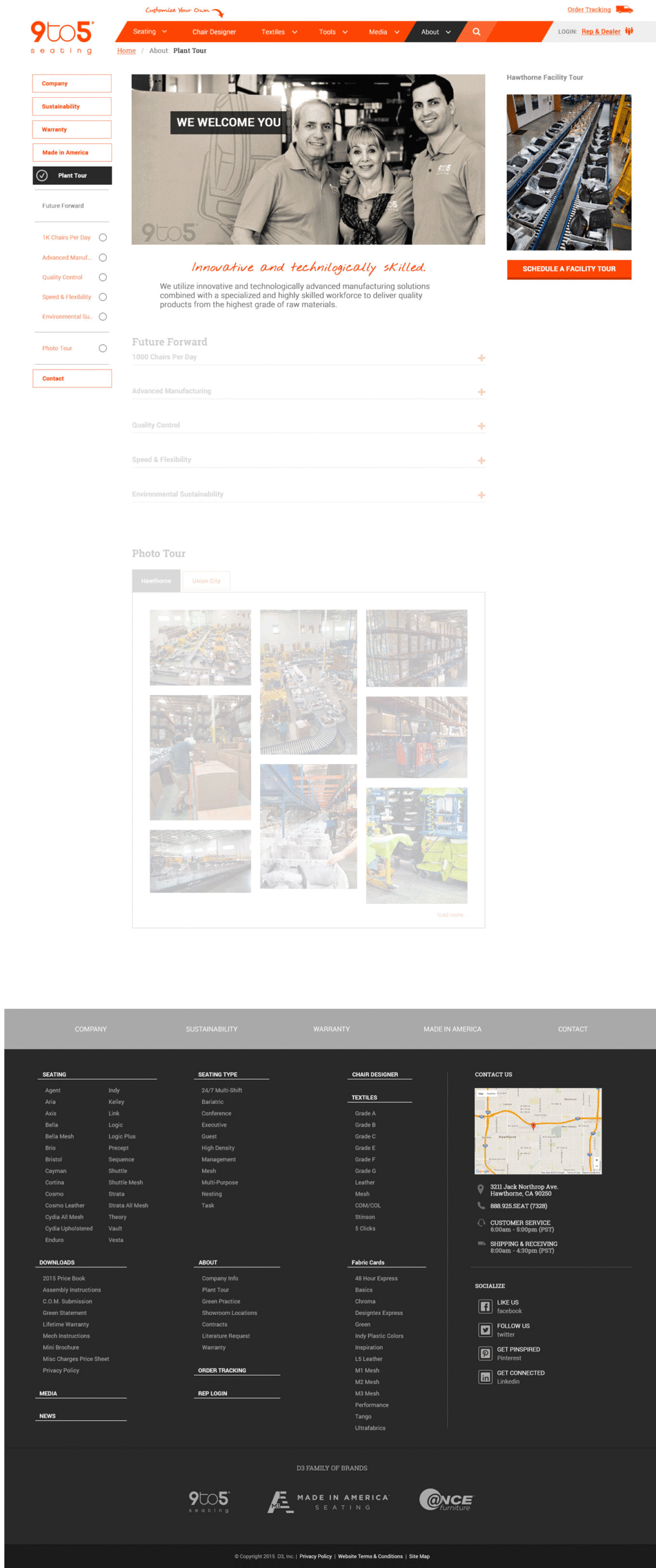

These layouts will display the default templates we would create for most internal pages. Unlike the unique pages above, these will generally display company information. So as we designed these page layout templates, we wanted to make sure that we stay consistent with how the layout felt from what we had on the Seating Overview. Since most users will navigate through the site, we thought it would be smart not to change the flow of the pages too much but make sure we had an intuitive layout when you seek new information. The sidebars also have consistency to them as they remain very similar across the site itself.
.

We needed to create a system that allowed the dev team to work smoothly. A good habit I started to do is create a dev sheet that went along with the initial site-map. That way, the development team understood if certain pages required any special attention.

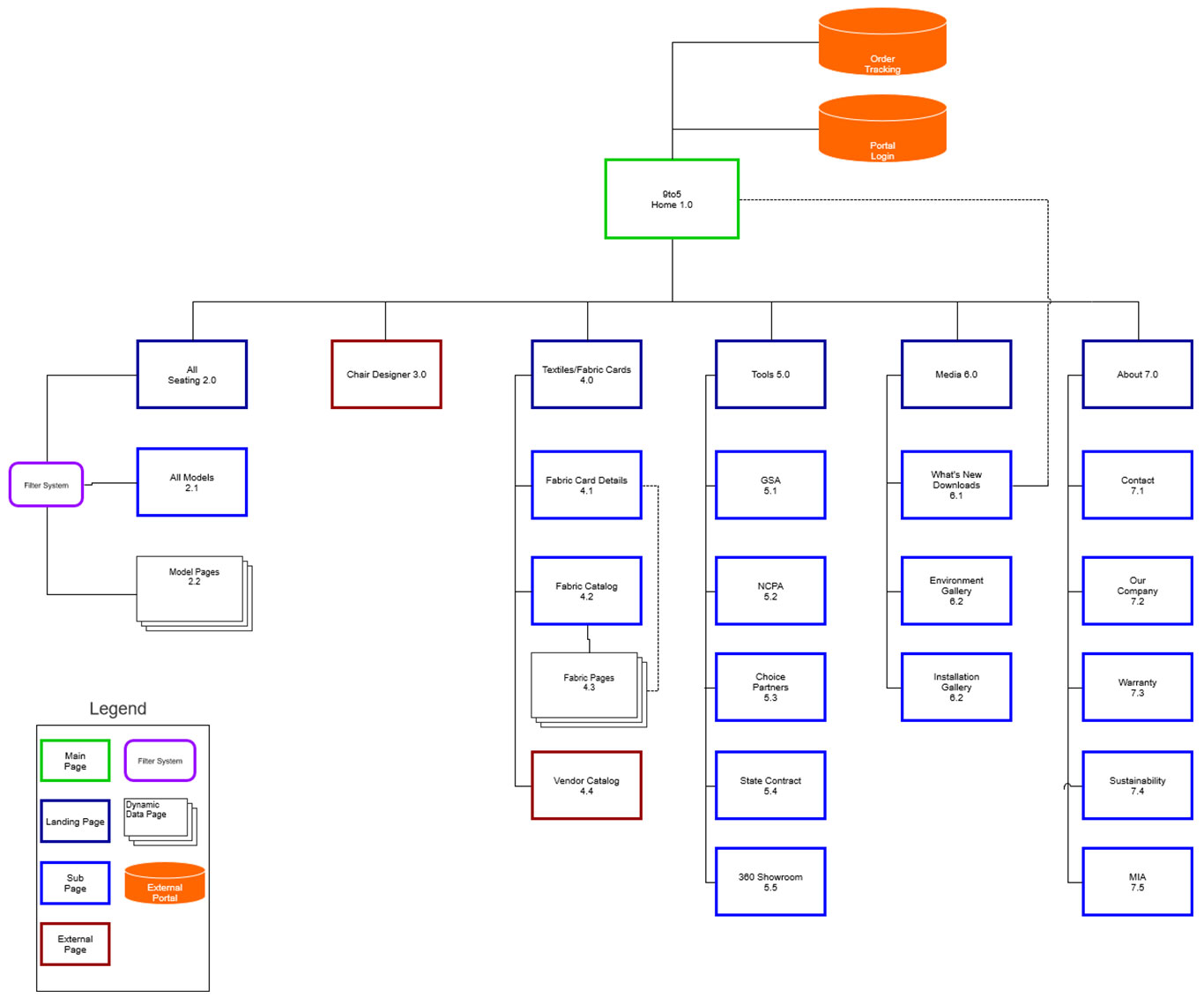

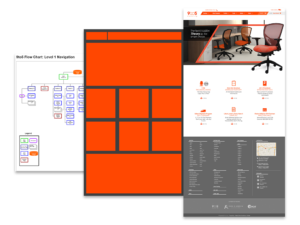

The initial site-map has a legend that consists of colors and special keys along with page number identities that would be used as a reference to the developer notes. The notes had individual developer points which would guide them accordingly.

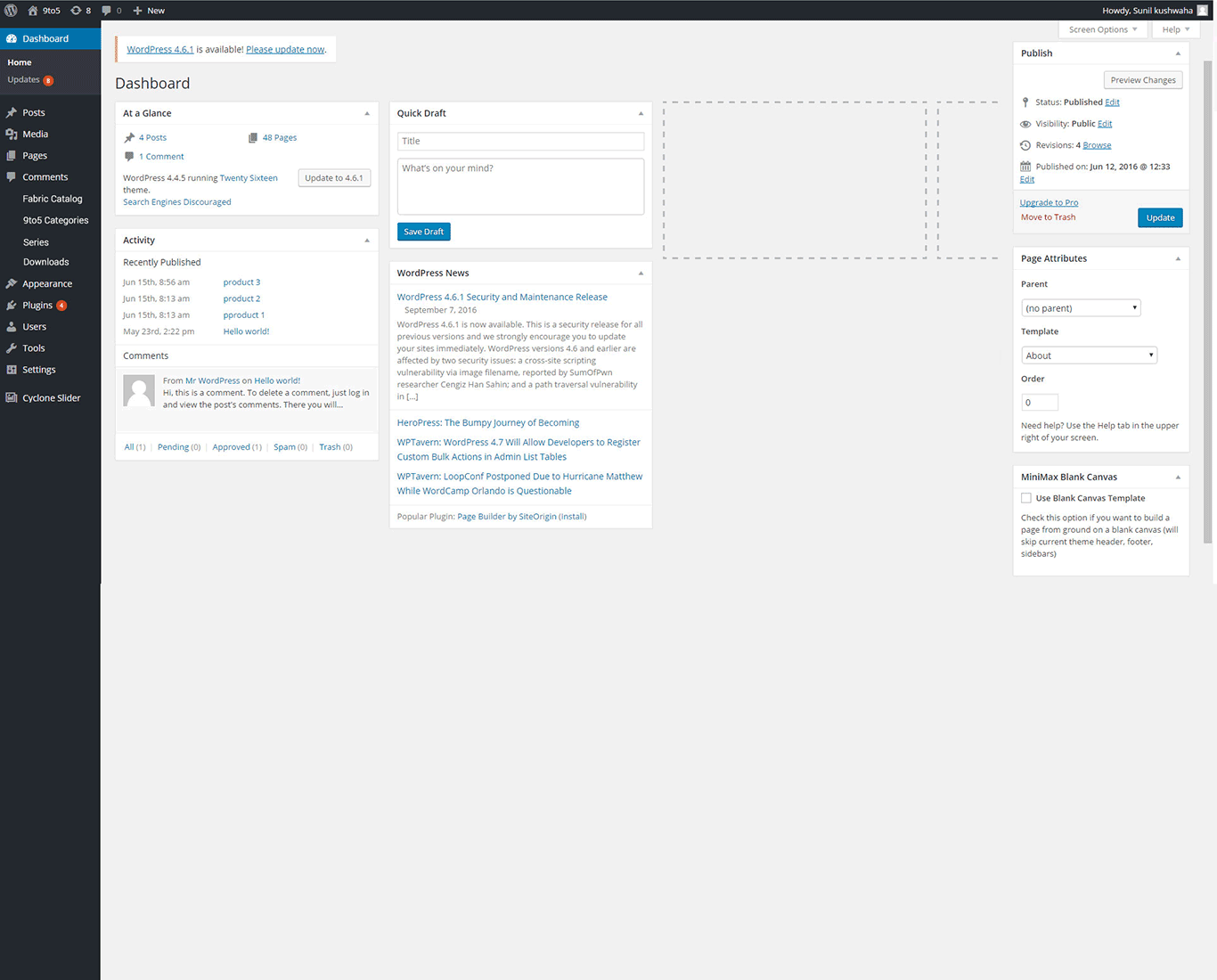

As mentioned previously the site would be based off of WordPress development. The Dev team had a difficult time understanding how to make the database come to life through WordPress. I took the time and mocked up an example of how the back-end should exist on the Content Management System side. We needed them to understand not only how the assets will show up on the side, but also how to get those assets on the site and saved to a database to auto populate into dynamic fields. The following mockup prototype was built for the team to get a good understanding of the labels we needed to add and how the fields were going to relate onto the product pages.

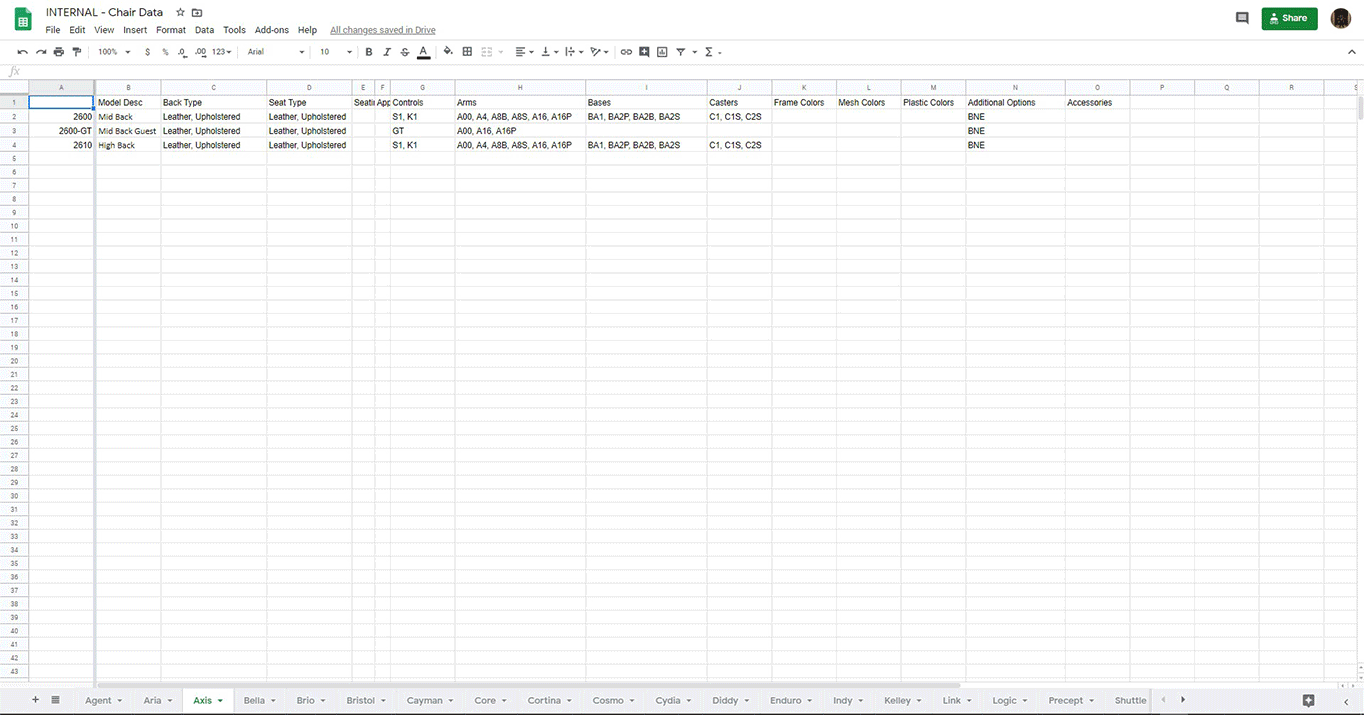

The mockup helped give the dev team a clear view of what needed to be done. Next step was to make sure they understood how the data worked and how it would translate onto the CMS. Mark Regynski and I had to fill out data tables via Excel/Google Doc Files to hand over to the dev team. The dev team would then appropriate the fields to the back-end of the CMS.

As all site assets have been handed over and we set examples to the development team of how the functionality of the site should be, Phase 1 of the new website was on it’s way. We still had minor bumps in the road but we worked together till the end result of the website. I’ve managed the team to the point where we got to test the site internally which most of our internal testers gave us the thumbs up! Phase One was now ready for launch!
